Victoria Lock: other artefacts

This should be a Google Map of Victoria Lock on the Newry Ship Canal.

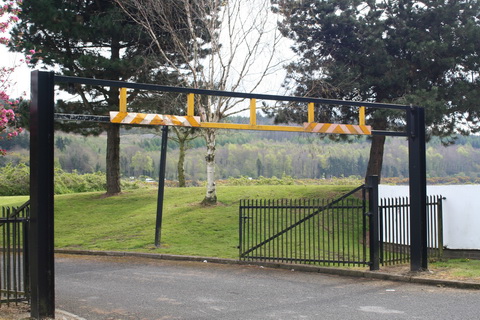

The entrance

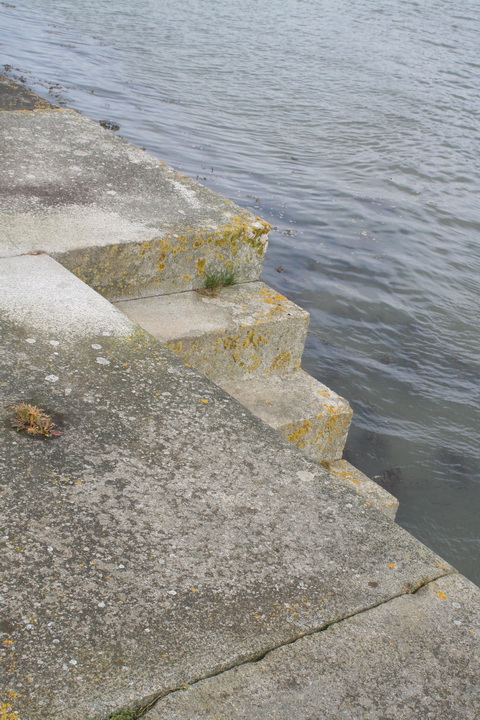

Stone steps to the lough east of the lower gate

Lamp

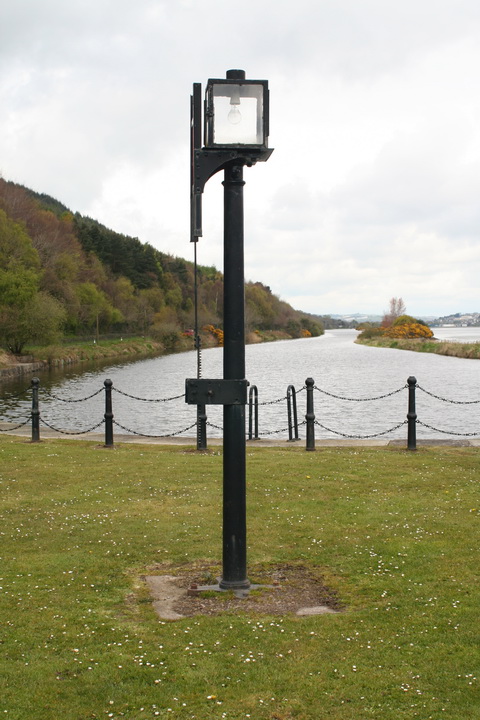

There is a lamp above the lock on the west (landward) side.

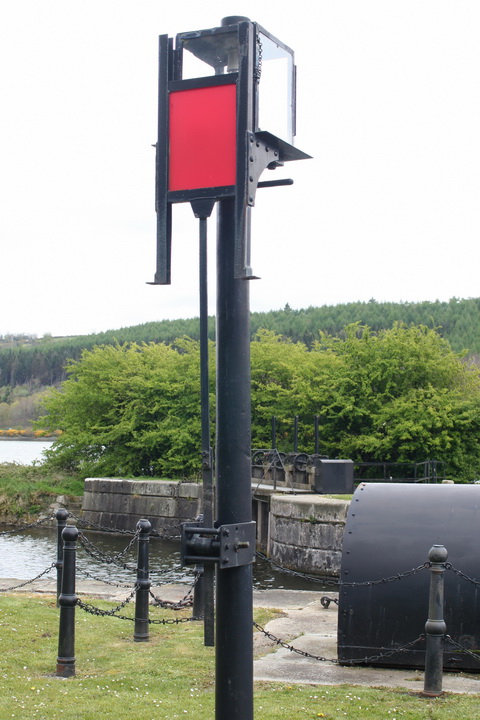

The lamp with its sliding red pane

Why is the red pane, which I presume to be the business end of the lamp, on the landward side rather than on the upstream or downstream side where boats could see it?

The winch

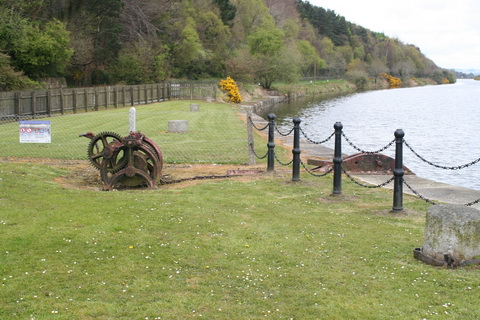

Close to the lamp, a little upstream of the lock on the landward side, is a winch.

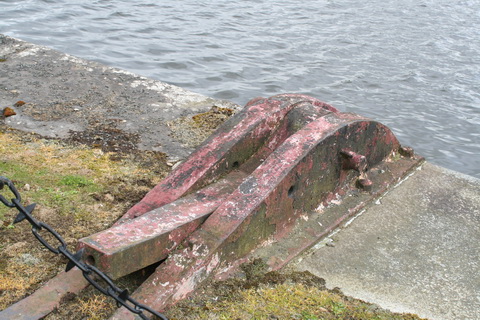

The winch

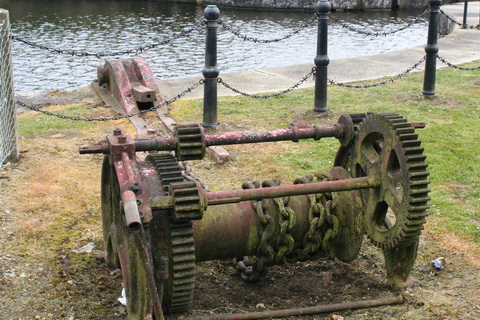

Close-up

The winch seems to have operated this, but what is it and what did it do?

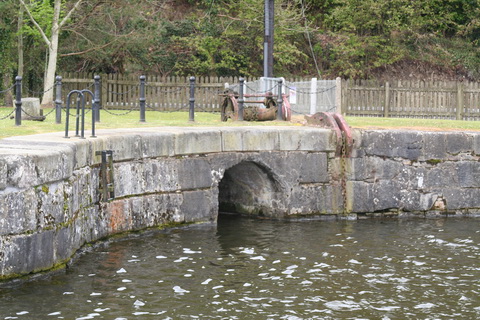

Had it anything to do with this tunnel? And what was the tunnel for?

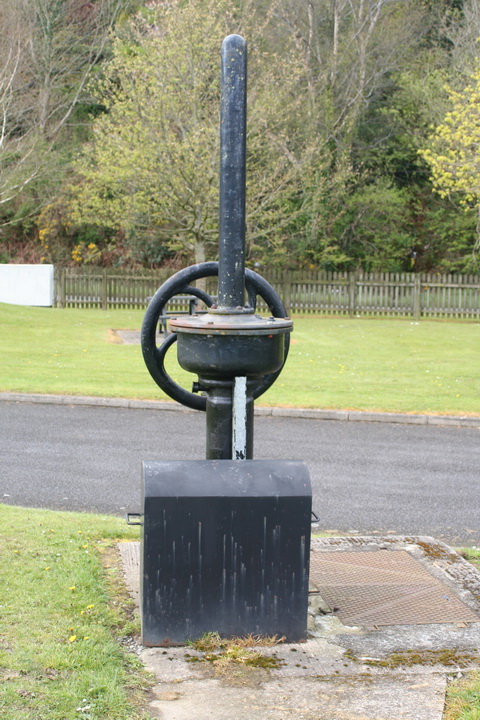

The mysterious mechanism

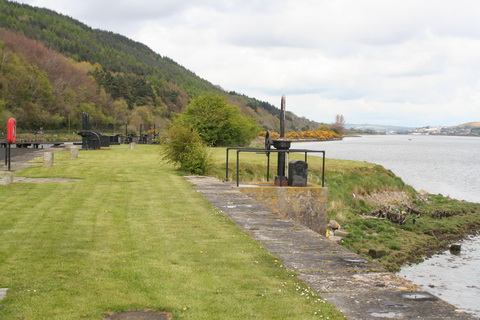

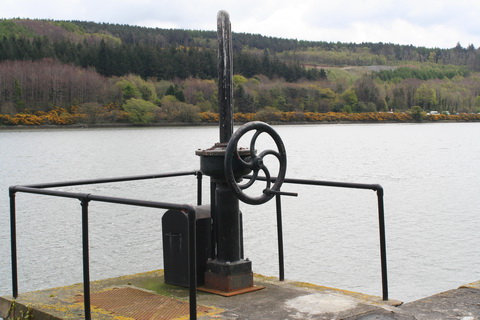

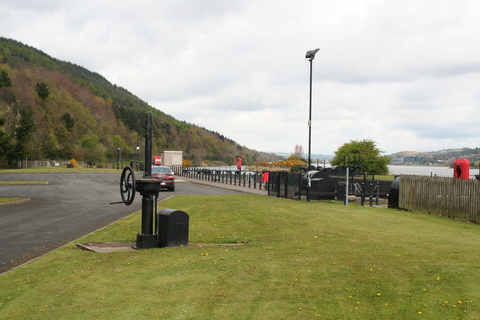

A solitary sluice/rack/paddle mechanism stands close to the entrance to the lock site, well away from the lock

It has a hydraulic box of tricks, so it must still be used for something. But what? Could the water from the tunnel (above) be flowing down this way for some reason?

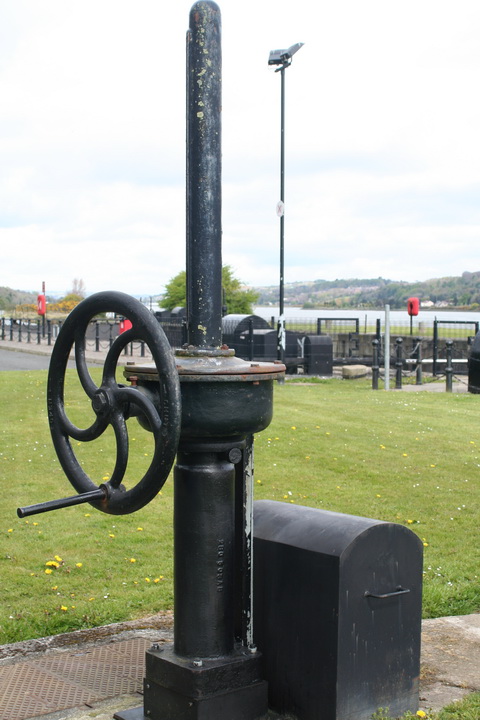

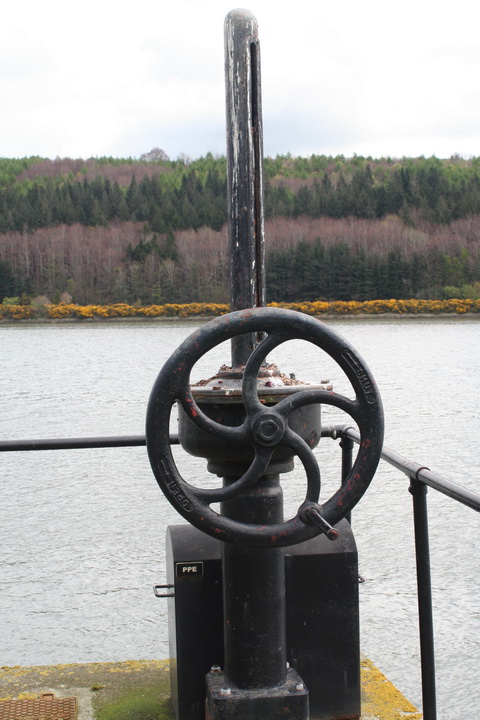

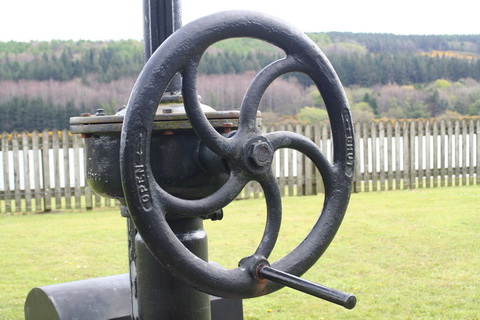

Perhaps the handle is a later addition …. The wheel has “OPEN” and “SHUT” written on it

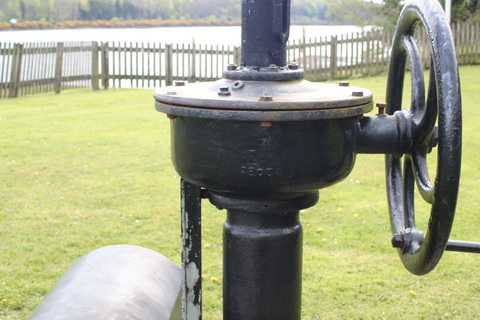

There’s a number on the base of the bowl, which John Ditchfield says is the identification number for the pattern that the foundry would have used to make the casting

Rear view

The posts

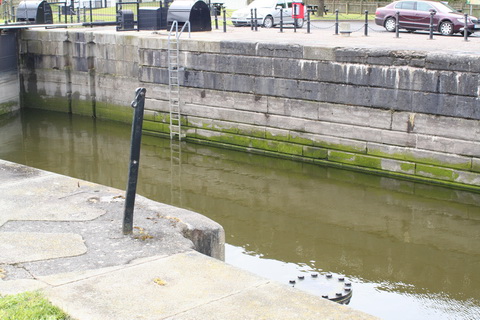

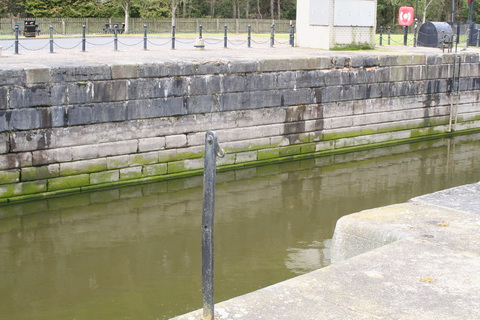

The centre gate recess on the east side …

… has two posts that were presumably intended to support something. But what? And why?

The easternmost sluice

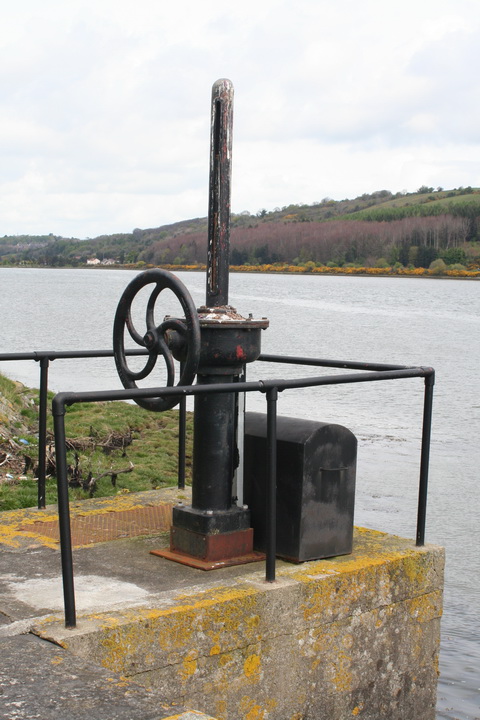

There is one mechanism on the east (lough) side of the lock

I presume it would allow the lock to be drained to the lough if the gate racks were not working

It too has been hydraulicised, so I imagine it’s still important

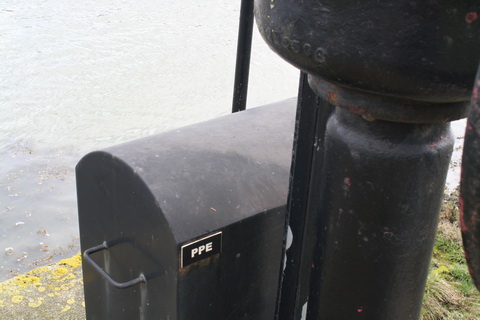

What’s PPE (apart from Philosophy, Politics and Economics)?

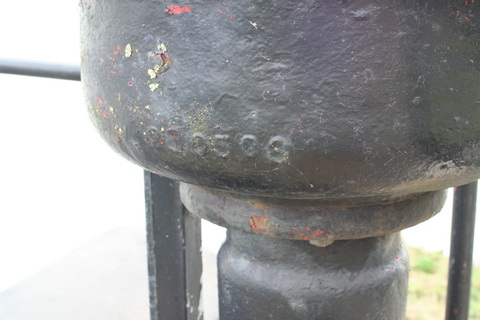

Another number whose significance I know not; perhaps this too is the foundry’s identification number for the casting

Birds seem to use it regularly

Return to the top-level Victoria Lock page.
