The Lartigue Monorail in Listowel

Välkommen till våra svenska läsare!

First, I have to come up with some justification for including this on a waterways website (apart from the fact that I like it) (and that the West Clare is here already).

Well, it’s another piece of industrial (transport) history you could see in the Lower Shannon Heritage Park. But perhaps more convincing is the fact that the Lartigue was set up to carry passengers to Ballybunion, a seaside resort on the south shore of the Shannon Estuary. While Kilkee in Co Clare was (indeed still is) favoured by many Limerick folk, and was served by steamer to Kilrush, Ballybunion was favoured by those from the south of Co Limerick and from Co Kerry. Some people may have come from the city by steamer to Tarbert and thence by road to Ballybunion, which was noted for its caves. It is rumoured that a foreign perversion called “golf” was practised there, no doubt in secret, in later years.

Anyway, the Limerick and Kerry Railway Act received royal assent in 1873 and its station at Listowel opened in 1870. The line seems to have been taken over by the Waterford, Limerick and Western Railway at some stage, but I can’t work out (in Ernie Shepherd’s Waterford, Limerick & Western Railway Ian Allan Publishing 2006)  when that happened. The folk of Ballybunion wanted a branch to their resort town, but didn’t get it.

In 1886 Charles Lartigue was demonstrating his monorail in London — and it was decided that Lartigue’s system would be just the job for linking Listowel to Ballybunion. And so it came to pass, and what may be the world’s most insane railway system was opened in 1888. The Listowel & Ballybunion Railway ran for about nine miles to Ballybunion, with one stop on the way at Lisselton (which seems to be where this bridge is). It carried people, cattle and sand, the last from the beaches of Ballybunion: sand was a valuable fertiliser in the nineteenth century. The line was severely damaged in the Irish Civil War and it closed in 1924; very little of the original equipment remains.

Here is how the Illustrated London News described the new line in 1888.

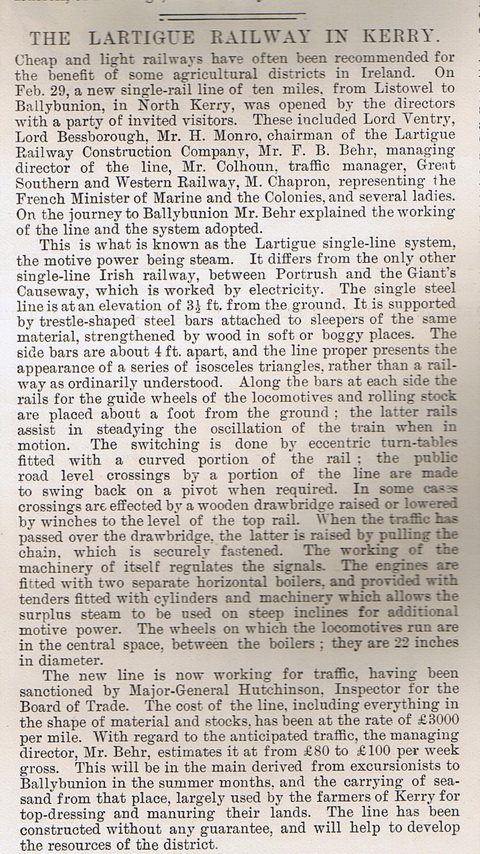

ILN 1888 1

The terminus at Ballybunion (ILN 1888)

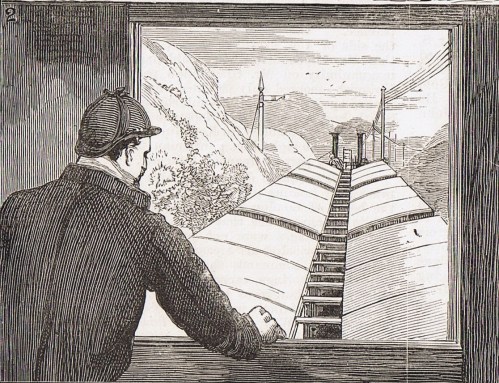

The view from the guard’s van (ILN 1888)

A Lartigue signalman (ILN 1888)

The Listowel recreation

The town of Listowel now has a recreation of a small section of track, an engine and two carriages, operated by volunteers (their website is here). There is a small but very good display of photographs in their building (the former Main Line goods shed).

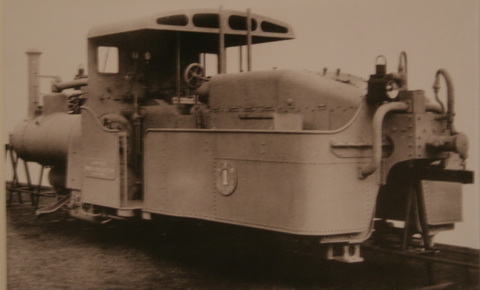

Original Hunslet engine: photo on display at the Lartigue

Original carriages: photo on display at the Lartigue

Three short films are shown. The first is newsreel footage of the operation of the line, including its answer to the level crossing. The second seems to be from a television report on the recreation, using some of the same footage. The third is about the last train on the Main Line through Listowel. The three together are entertaining, evocative, informative, and by themselves worth the modest price of admission. The building also has some artefacts on display.

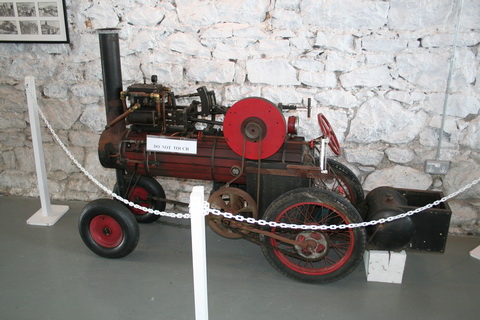

Nothing to do with the Lartigue, save that this working steam engine was made by the Lartigue volunteer driver

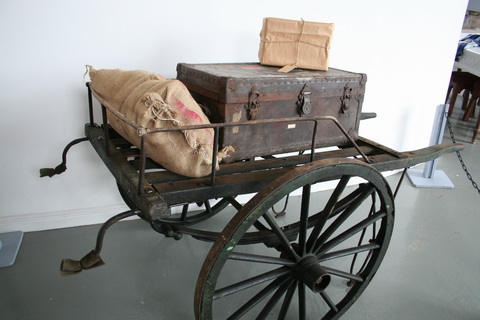

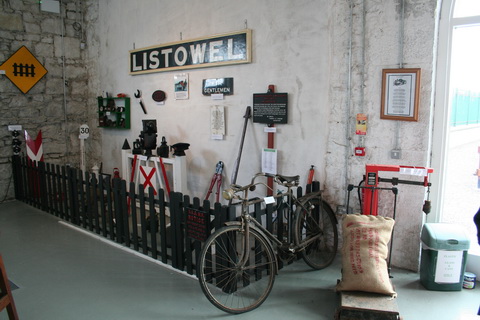

Handcart

Original section of rail

Original wrench

Some more modern (presumably Main Line) gear

And there are models.

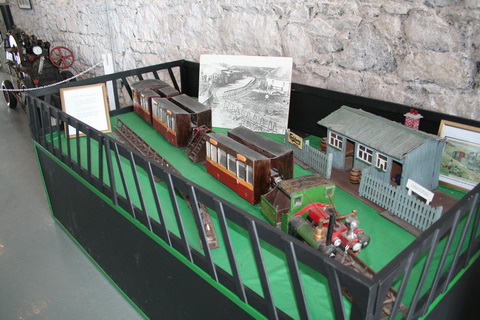

Model train

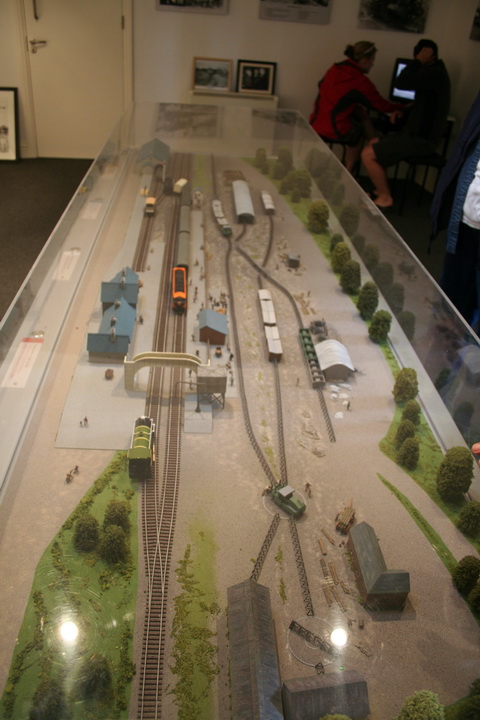

Model of Listowel Main Line and Lartigue stations. The building furthest away is the Main Line Goods Shed, now the Lartigue HQ, and the recreated track extends away from there

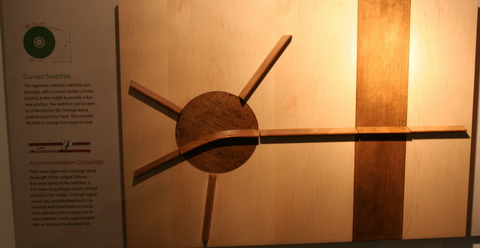

Model explaining the “switches” (the Lartigue’s version of points). Apologies for the poor quality of this and the next photo

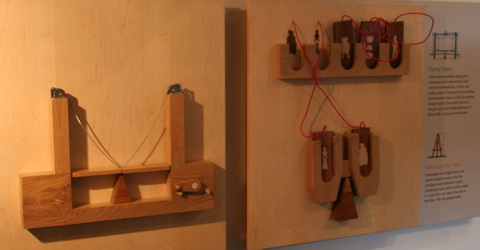

On the left, a model of the Lartigue’s “flying gates”; on the right, an illustration of the necessity to keep the loads balanced on the two sides of the train

I have used the word “recreation”: this is not a restoration, because there was very little left to restore. But the recreation of the engine, carriages and track (by Alan Keef) appears to have been done with great care and skill, after gathering as much information as possible about the original Lartigue system. The big change is that the engine is now diesel, not steam (which is sensible); some smaller changes reflect modern health and safety requirements. The volunteers who were on duty when I visited were extremely knowledgeable — as well as being friendly, helpful and ready to chat. Anyone with an interest in transport will find it easy to spend at least two hours at the railway.

The old site

Part of the Lartigue’s original site, beside the current site, can be visited. It includes the foundations of the old engine house and two switches, as well as a wall of the original station house, the only building on the railway that was not built of corrugated iron. There are photographs and descriptions around the site to explain the layout.

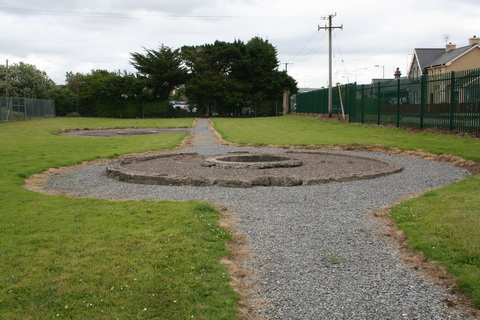

Foundations of old engine house

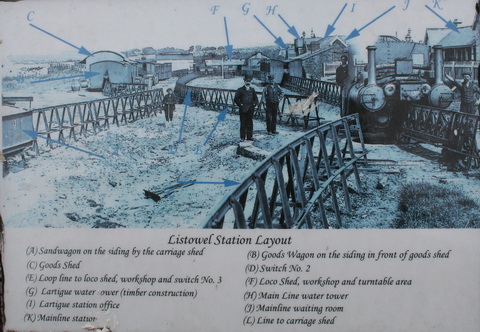

Outdoor display explaining the original layout

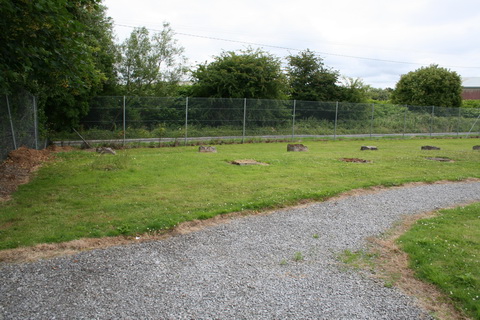

Bases of two switches

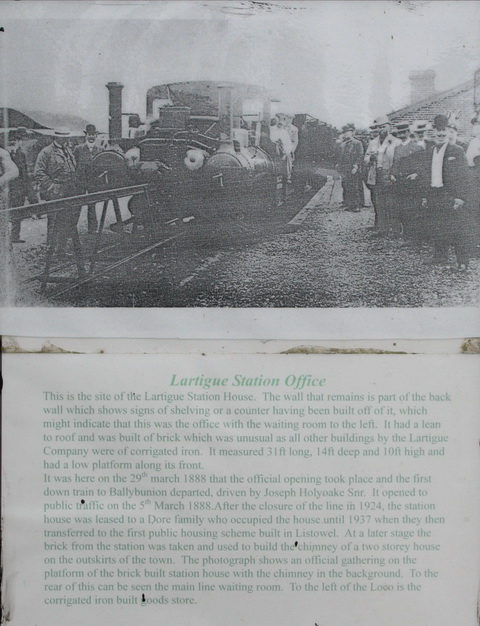

Information about the old station house

The new site

We return to the new site.

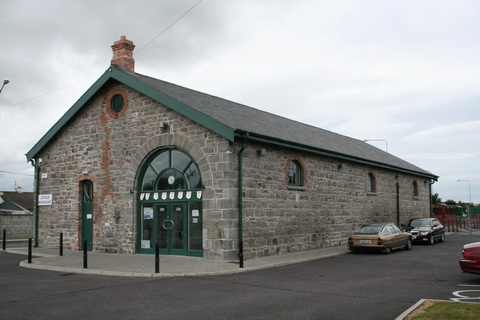

The current Lartigue HQ

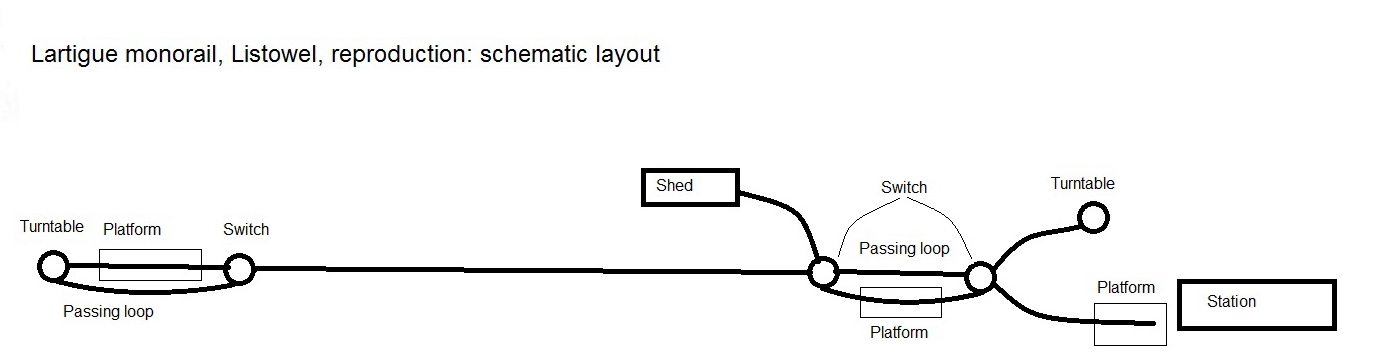

Here is a rough sketch of the layout of the track. It has been designed to reproduce the essential features of the system with a much-reduced length of track. So there is much use of the switches and turntables, but relatively little travel.

The layout

You travel from the station to the far end, where you can get out at the platform and watch as the engine is disconnected from the train and turned on the turntable. It then runs around the carriages on the passing loop (correct me if I’m getting the railway terms wrong), reverses back over the switch and reconnects to the other end of the train, before drawing it back to the station. At the far end, it stops at the middle platform. The engine goes to the turntable, turns and goes through the switch to its old position (but facing the other way). Then it reverses through the switch towards the station, before switching to the passing loop, going through the next switch and reversing to push the train back to the station platform.

The track

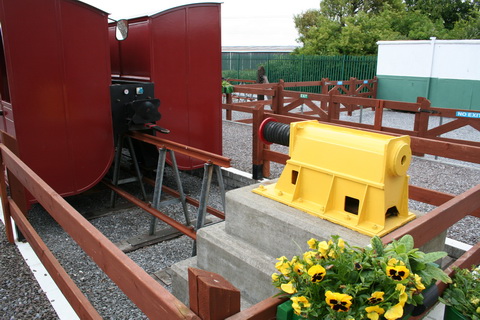

Buffer at the station end

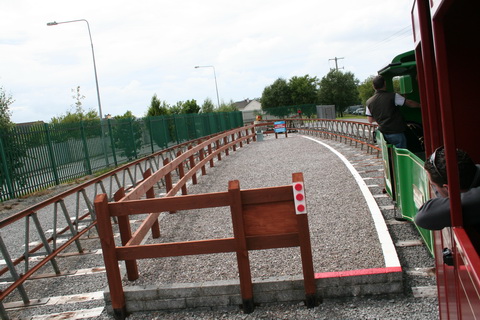

Looking down the tracks

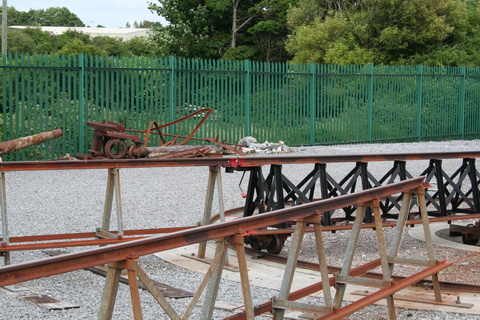

One end of a switch (equivalent of points). Note the red knob on the locking mechanism: if it’s up, the switch is unlocked

Markings on a switch

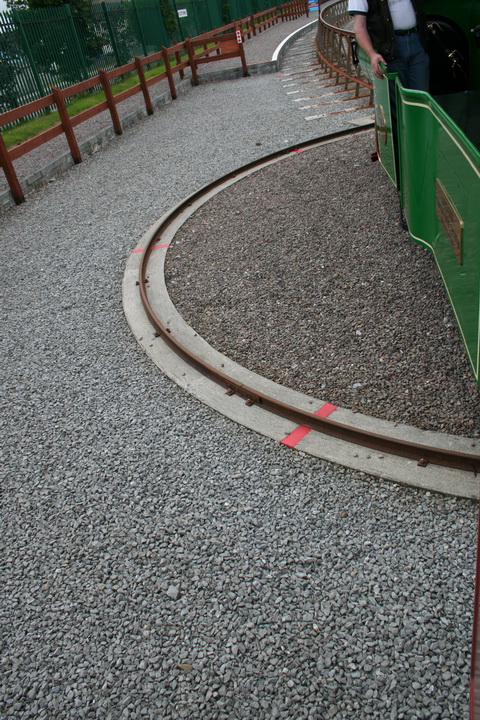

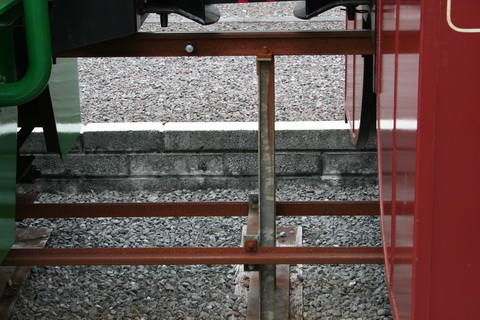

A section of track

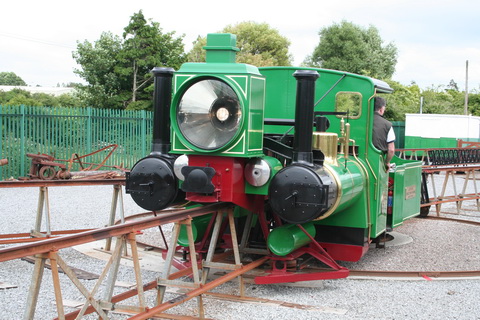

The engine

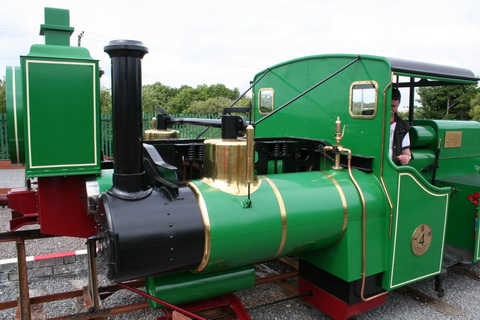

The original had two boilers, two fireboxes etc for balance

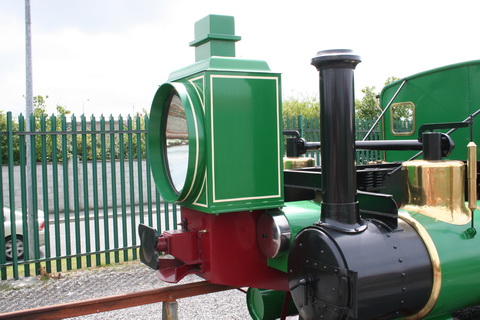

The enormous headlight

The driver, who built the small engine displayed inside

The original Lartigue had three engines, so this is No 4

The originals had three driving wheels; the recreation has only two. The originals also had two auxiliary driving wheels in the tender that could be switched on in case of need, but they didn’t work very well

See this article at the invaluable Museum of RetroTechnology for more on the technical aspects. Wikipedia has some information too.

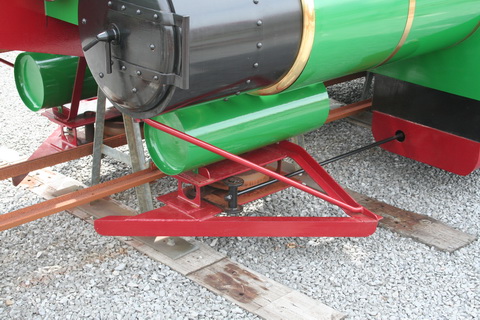

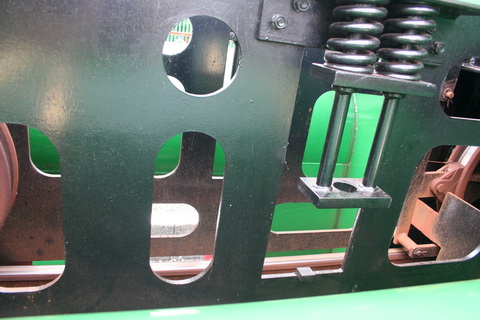

Engine guide-wheel

Tender

Back of cab

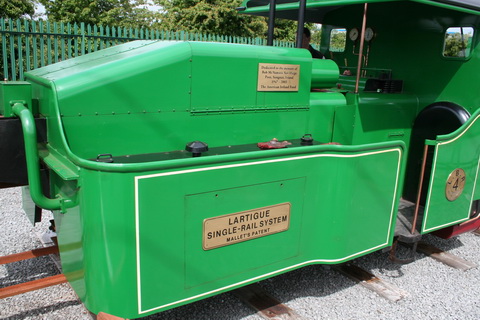

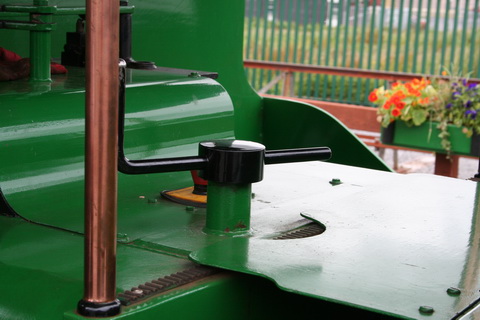

Engine detailing 1

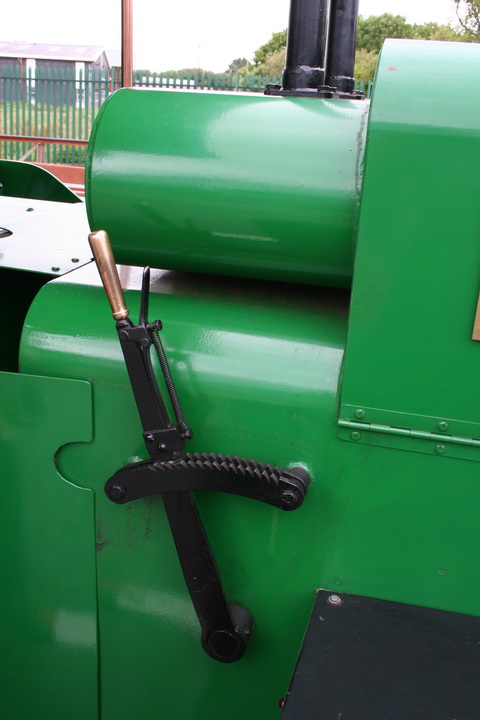

Engine detailing 2

The carriages

The recreation has two carriages: one third-class and one third-class-plus-guard’s-van. Third-class passengers sat longitudinally; first-class passengers sat conventionally, facing each other, and had the benefit of a stove. The guard’s van has stairs at the back, as on the original, to enable passengers to get across the one-metre-high track.

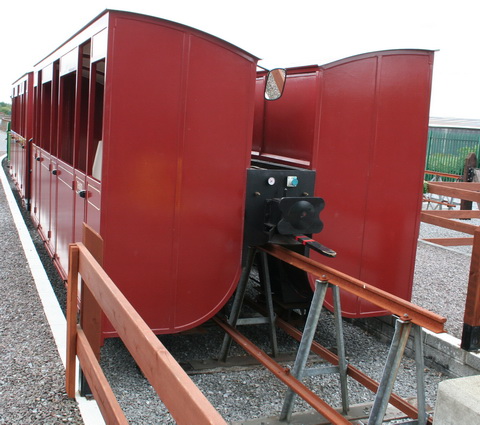

Carriage. Note the mirror

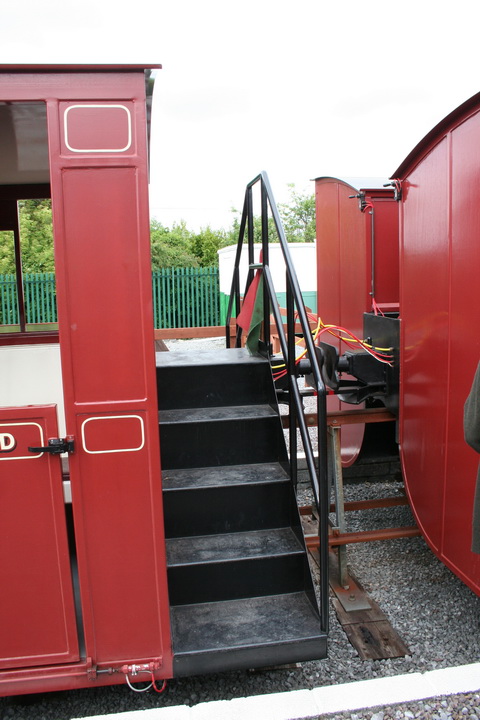

Stairs

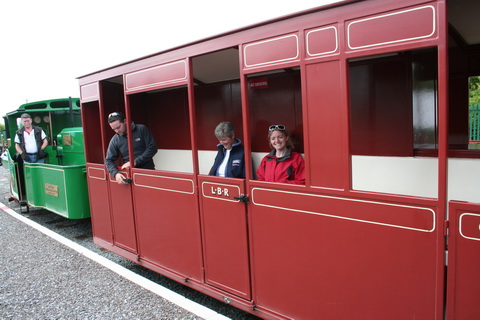

Passengers

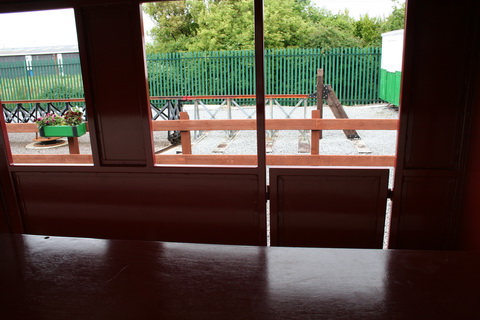

The guard’s van section has provision for seeing from one side to the other

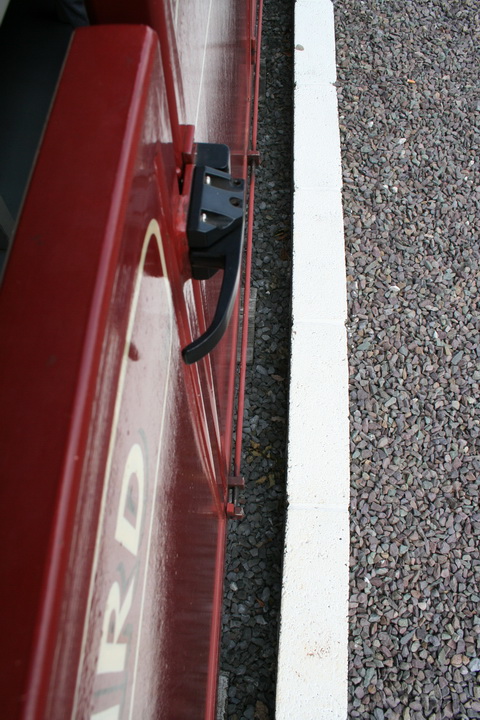

The bar at the bottom is a remote locking mechanism for the doors

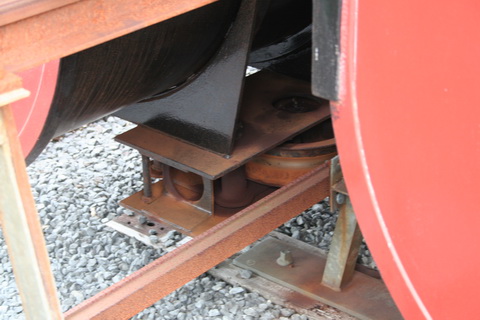

Carriage wheels

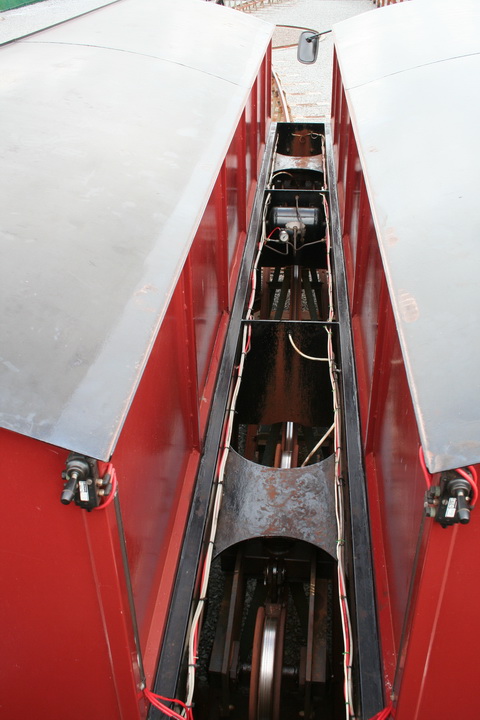

Carriage guide-wheels

Couplings

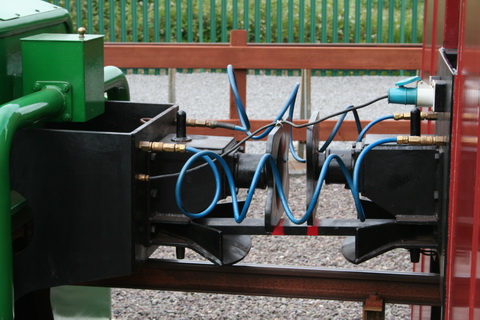

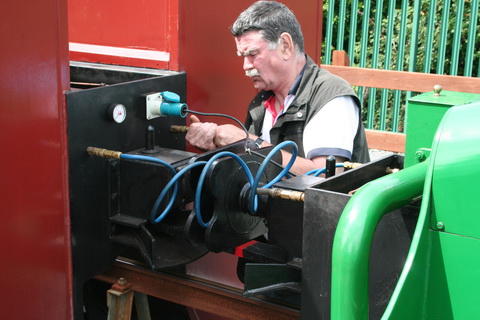

Health-and-safety-influenced coupling system: horizontal bar and vertical pins do the work

Connecting up

Leaving the station

Green flag

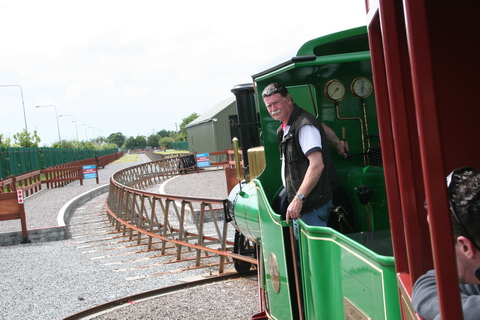

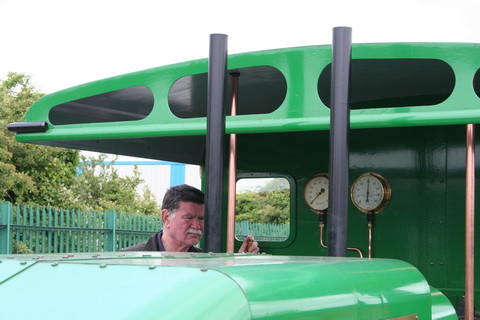

Here is our driver, contemplating the long road ahead.

A long road

The distant turntable

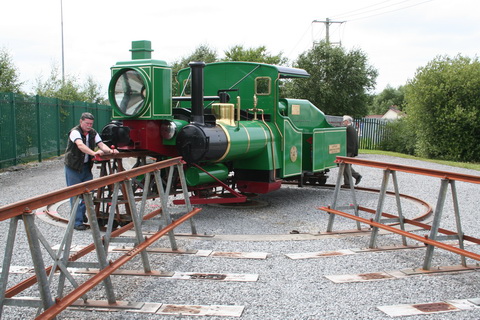

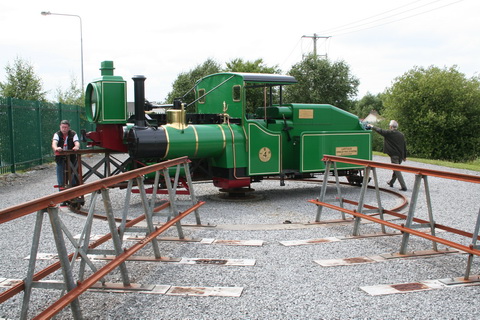

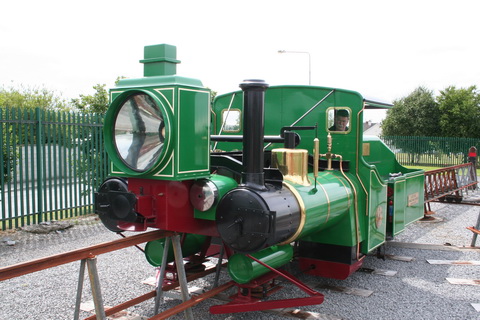

Turning at the far end 1

Turning at the far end 2

Turning at the far end 3

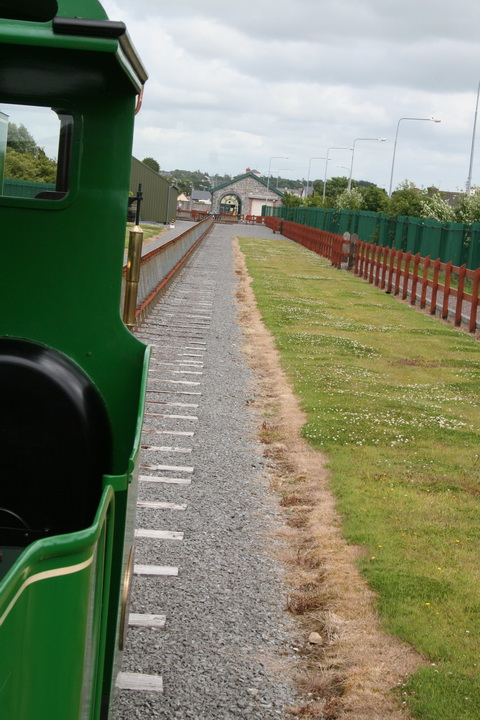

Heading for home

The station in sight

Crossing a switch

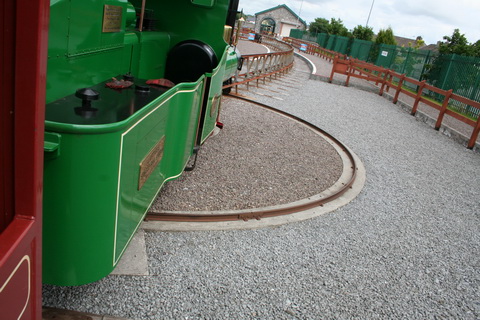

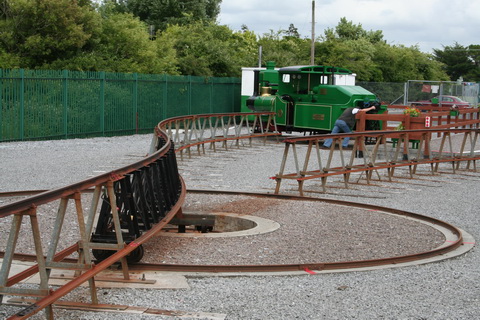

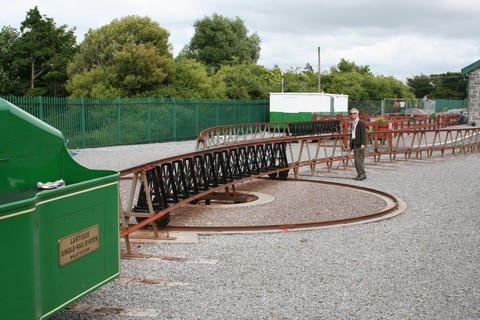

The station turntable

Having hauled its carriages to the middle platform, the engine goes to turn on the station turntable, the first step in an elaborate manoeuvre that will enable it to push the carriages the last few yards into the station.

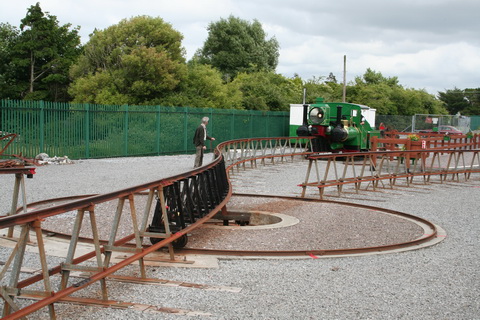

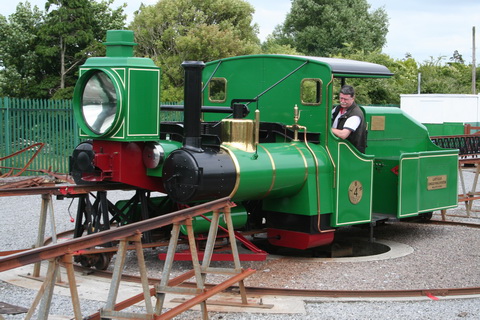

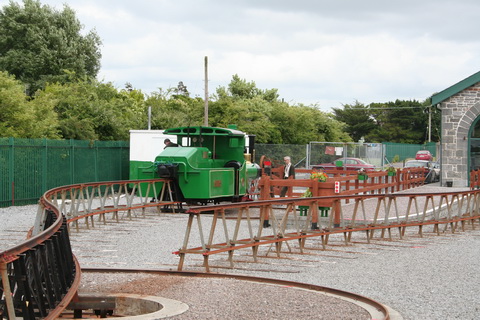

On the station turntable 1

On the station turntable 2

On the station turntable 3

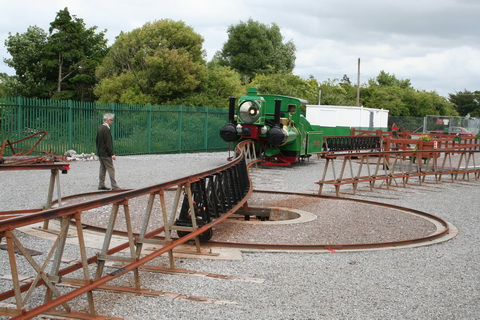

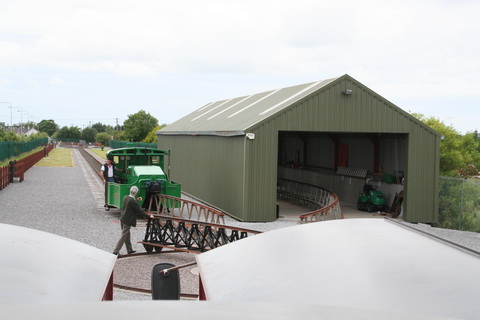

Switching

Now the engine has to get on to the passing loop, so that it can reach the far end of the train and push it backwards into the station.

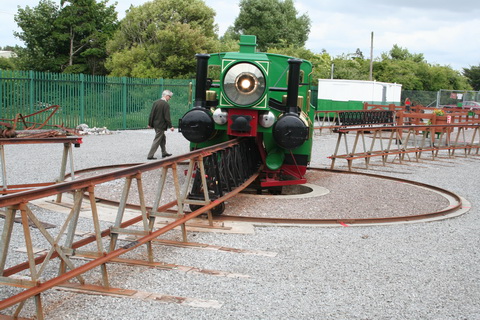

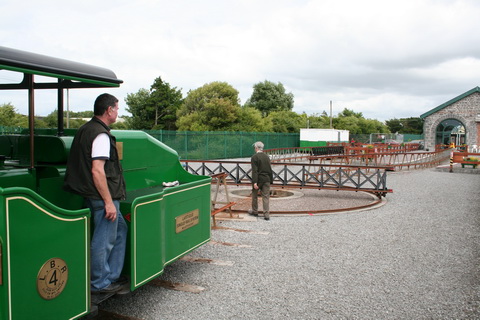

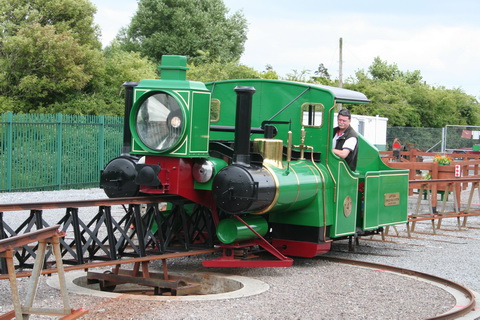

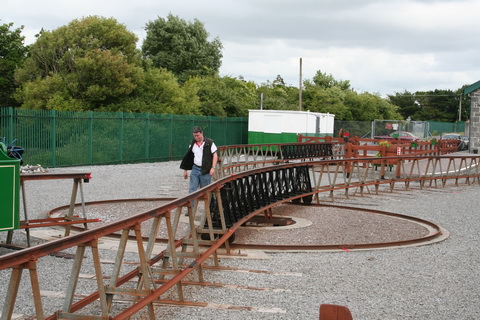

The engine approaches the switch from the turntable

It crosses the switch to the rear of the train

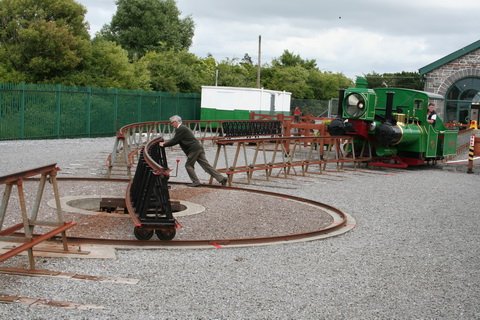

The switch is swung the long way around …

… and the engine can now …

… reverse towards the station

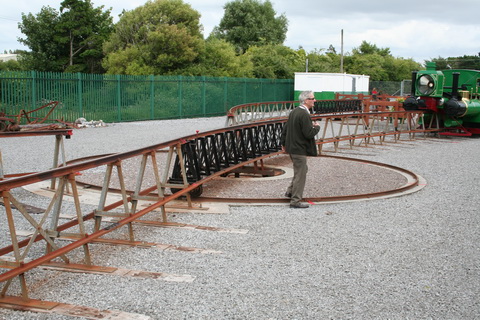

The switch is swung again …

… and the engine drives forward …

… over the switch and on to the passing loop

The driver resets the switch …

… and, having passed through the middle switch, can now reverse and push the train back to the station. Simple, isn’t it?

Envoi

If you can correct or supplement anything I’ve written here, do please leave a comment below.

If you want to be notified of new material on this site, go to the front page and subscribe to the RSS feed: you’ll get a short notice (perhaps with a photo or two) whenever new material is added or there have been significant additions to existing material. You won’t get ads.

There are four nice photos of the Lartigue from 1914 on this page (h/t Antoin Daltún). There is a 3½-minute video of the original Lartigue on the British Pathé website. It doesn’t work on my PC, perhaps because of my ssecurity settings, but I was able to look at the many stills.

The other monorail beside the Shannon River is covered here.

Finally, I heartily recomment a visit to the Lartigue in Listowel.

rail10

13 responses to “The Lartigue Monorail in Listowel

  1. Fascinating. Level crossings might be a bit of a pain!

    How wonderful that this system has been remade.
    Are there plans to extend the line?

    All we need is for a recreated atmospheric railway!

  2. I should have said something about the level crossings. A ramp was built on each side of the track, leading towards the track. There was a small drawbridge on each side (a flap, if you like); the bridges were lowered on to, and thus supported by, the rail, then rapidly wound up again afterwards. See my rather poor photo of the wooden model of the “flying gates”. The film includes a sequence showing a donkey and cart crossing the track using a flying gate.
    I don’t know of any plans to extend the line but perhaps, if busloads of visitors were to arrive, there might be some chance.
    bjg

  3. Hi Brian

    Very good article on the Lartigue (have taken the liberty of linking to it from my own site).

    Concerning the Limerick and Kerry Railway, the following on P118 of “The Great Southern and Western Railway” by D.B. McNeill and Kevin Murray refers:

    “The R&NJR and L&KR never merged with the W&LR; they retained their independence until absorbed into the GS&WR on 1 January 1902.”

    R&NJR – Rathkeale and Newcastle Junction Railway
    L&KR – Limerick & Kerry Railway
    W&LR – Waterford and Limerick Railway
    GS&WR – Great Southern and Western Railway

  4. Thanks, Ewan. While I think of it, thanks for the heads-up on your site about on the Butler photographs exhibition in Monasterevan: I have taken the liberty of passing on the info to the Heavy Metal Brigade.

    Thanks for the explanation about the L&KR. What confused me was that Shepherd’s book has a map of the WL&WR on the back cover, and it includes the L&KR. However, from the text, it seemed that the WL&WR was operating at both ends of the Kerry operations (including the Tralee-Fenit line). I should stick to waterways: much easier!

    Seriously, though, I think the Lartigue is worth a visit. Nobody there is pretending that it’s original kit, and the system is so interesting in itself that I would put this in a class above some other “tourist railways” that shall be nameless!

    bjg
