Maps

Many thanks to the learned Eoin C Bairéad for the information that the good people at logainm.ie have scanned many old maps, and other documents, and made them available here, free of charge. They include maps of counties bordering the Shannon, Murdoch Mackenzie’s 1775 chart of the Shannon Estuary (with some soundings) and Mackenzie’s Views of the West Coast of Ireland.

Note: some of the files are very large.



Bang

The inhabitants of this city [Dublin] were greatly alarmed yesterday evening, between the hours of four and five, by a most violent concussion of the air, which broke several panes of glass, cracked others, and shook houses to the foundation in an unusual manner, accompanied by a very loud explosion. In the country parts adjacent to the city, the fears of the people led them to imagine that there had been a shock of an earthquake — but the cause proves to have been the explosion of two boats, that were coming down the Grand Canal, freighted with gunpowder from Counsellor Caldbeck’s powder-mills at Clondalklin.

Many lives it was reported were lost; but we can assure the public, from the best authority, that no more than two men were killed, and five or six slightly wounded. The loss from the gunpowder is not estimated to be very great.

It is not as yet ascertained through what manner the fire was suffered to communicate to the powder. It was said that it was from one of the hands having dropped some blazing tobacco from a pipe which he was smoking, but for that there appears no foundation.

Dublin Evening Post 24 April 1787

Tories on the Barrow and the Shannon

I read here that Olivia O’Leary, who chairs a Save the Barrow Line committee, says that the Barrow Line (trackway or towing-path)

[…] is a natural amenity and should be maintained as it is.

It isn’t. It is an entirely artificial creation, built to enable the use of horses to tow boats. Any geraniums, beetles, butterflies or tweetie-birds using it are interlopers, squatters and trespassers and should be paying rent; at the very least they should take second place to humans.

The Grand Canal Company often complained about the poor quality of the Barrow trackway: the surface was not up to the job. If it is to cater for more users, it may well need to be improved. That is an engineering decision on which I am not competent to pronounce but, as the Barrow is pretty well a dead loss for long-distance cruising by larger boats, it needs to be redesigned for walkers, cyclists and canoeists.

But at least the Barrow NIMBYs are prepared to accept more boats. Dr William O’Connor of the Old River Shannon Research Group writes about the Shannon here, complaining about the small number of “garish canoes” that occasionally travel downstream from Castleconnell to Clareville. Dr O’Connor asks

[…] why has it become a free-for-all for canoeists?

The answer is that there is a right to navigate, as I pointed out here (with an addendum here): I have had no response from the ESB so, while being open to correction, I maintain my position. Anglers may believe that their interests are paramount on that stretch of the Shannon: I disagree. Of course I would be all in favour of discussions between anglers, kayakers, dog-walkers and other users (even environmentalists), but such discussions cannot be based on a presumption that one group has all the rights, or that one activity is of supreme importance, and that the rest are secondary.

For some reason, canoes operated by commercial providers are particularly to be condemned, although it is not clear how salmon and lampreys can distinguish between public-sector, private-sector and voluntary-sector canoes — or whether they would be bothered anyway: Dr William O’Connor says

It is noted that there has been little scientific research on the ecological impact of canoeing.

In other words, there is no reason to believe that there is any basis for the concerns expressed by Dr O’Connor or by various anglers.

More broadly, though, the common factor on the Shannon and the Barrow is that existing users of public facilities are resisting new or expanded uses and seeking to protect their privileges. Irish Toryism is alive and well.

Addendum: this is probably the solution to the salmon problem.

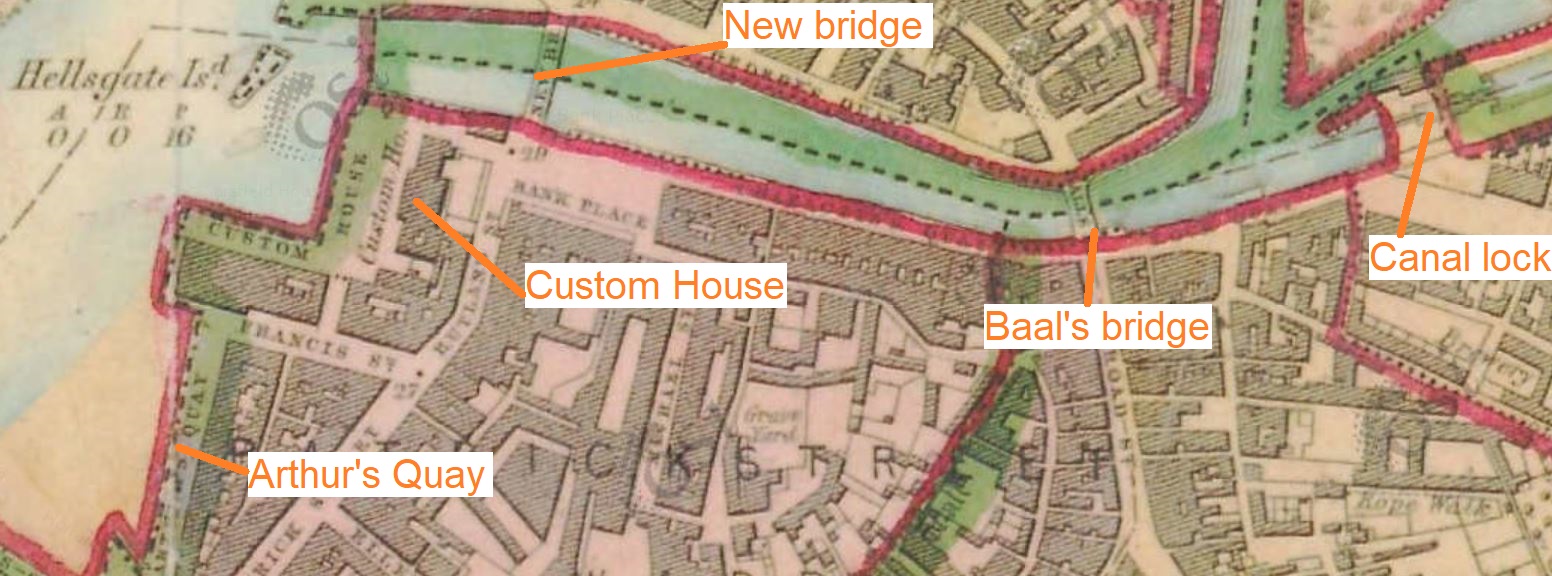

Boarding in Limerick

On the morning of the day on which I left Limerick, a truly melancholy and fatal accident occurred. Just as the steamer which starts every morning for Kilrush and Kilkee, was in the act of leaving the quay, a car was seen to approach very rapidly to the station, from which the vessel had just begun to move. Planks are not used at these quays, the water being sufficiently deep to admit of the steamer lying so close as to enable the passengers to step off from the quay on board the vessel.

A fine young man jumped off the car, and took a female who was on the opposite side in his arms, and ran with her to the packet, and had just succeeded in placing her feet in the side of the boat. In order to get her safely aboard he had to push her forward, and by this means accomplished the object he had in view. But alas! in achieving so much for her, he lost himself; for at this moment the packet moved off, and it became impossible for him to reach her; while the efforts he had previously made to get the lady on board occasioned him to stretch so far forward that it was equally impossible for him to recover his upright position on the quay. The consequence was that he fell between the quay and the steamer, and, as it was supposed, was struck by a revolution of the paddle, for he never rose.

What must have been the feelings of the poor female in witnessing the sudden and melancholy death of her gallant preserver? She was in delicate health, and was about to proceed to Kilkee for the benefit of sea-bathing, when this awfully heartrending event took place, which deprived her of him who was her darling and her pride; for alas! he was her son.

Thomas Lacy Home Sketches, on both sides of the channel, being a diary Hamilton, Adams, & Co, London; W H Smith & Co, London; McGlashan, Dublin, 1852

Date of event (deduced) Wednesday 28 August 1850

Royal towpath Clonsilla

Visiting the Royal Canal at Clonsilla recently, I noted some interesting features of the canal’s stonework. I do not know how old they are or what they were for; I would welcome information from readers.

img_7796_resize

Clonsilla (Callaghan) canal bridge in the foreground; a railway signal box behind it

The towpath crossed from the south to the north bank at Porterstown (Kennan) Bridge, just east of this one. The passage boat Longford sank in 1845 between these two bridges; fifteen people died.

img_7792_resize

Looking west from the bridge

Clonsilla (Callaghan) Bridge (OSI ~1900)

Clonsilla (Callaghan) Bridge (OSI ~1900)

The Ordnance Survey of Ireland 25″ map of around 1900 shows what looks like a ramp leading up from the towpath, on the east side, to the level of the bridge and the road; the earlier 6″ map (late 1820s to 1840s) is less clear and I cannot tell whether the ramp existed then. However, the recent photograph, taken from the bridge, does suggest that the wing wall of the ramp has been built up, with newer stone, and that much of the area of the ramp has been taken in to the gardens above. This, of course, is speculation on my part and I would welcome clarification (leave a Comment below).

img_7797_resize

Built-up wall

Note what looks like a very tall gate pillar half way along. I don’t know much about architecture or construction, but the fact that the canal side is vertical makes it look to me more like a gate pillar than a supporting buttress for the wall of the ramp.

img_7800_resize

The eastern pillar from the towpath

Here’s a close-up. You can also see what looks like the dividing line between the older stone of the ramp, which slopes away from the towpath, and what I assume to be newer stone, built vertically, integrating part of the ramp (presumably with infill) with the garden above.

img_7801_resize

The eastern pillar from the towpath (close-up)

Here it is looking eastward (away from the bridge).

img_7803_resize

Looking eastward

There is a similar structure on the west side of the bridge.

img_7798_resize

The west side of the bridge with a pedestrian bridge beside it; the railway station is on the right

Here is what looks like the remains of a similar gate pillar.

img_7805_resize

Western pillar (looking west)

Note the vertical face of the pillar against the slope of stones on the embankment,

img_7808_resize

Vertical face (with missing stones)

These pillars may have some engineering significance in holding up the embankment, but I wonder whether they might have been used to hang gates closing off access to the towpath for some reason. I don’t know whether other bridges have similar arrangements.

Waterways Ireland commissioned a Heritage Survey of the Royal Canal, which is available here [PDF], but that document does not contain any of the details and, judging by WI’s Heritage Surveys page, it does not seem that the “detailed database report” on the Royal will be made available on the WI website. Accordingly, I do not know what the survey says about these pillars.

All information welcome.

Addendum December 2016

Peter Clarke, in The Royal Canal: the complete story Elo Publications, Dublin 1992, points out that, in 1807, there was a passenger service from Dublin to Clonsilla: the six miles cost 1/7½ in first and 1/1 in second class.

Could it be that the passenger station was under the bridge, with access controlled by gates at either end? Horses could have been changed too, with the ramp providing access for horses to the road. Passengers too could use the ramps, but horses could not use steps. And, as modern canal users will attest, it is always easier to embark and disembark passengers under bridges, where there is deep water at the edge and where the boat does not have to go off its course.

If that is so, there might be similar stonework at the other passenger stations that were located at bridges rather than at harbours. There would be traces of gate pillars at either side of a bridge. Ramps would be required only where the canal bank’s level was significantly above or below that of the road.

My OSI logo and permit number for website

A one-act history of a bridge

The Limerick Harbour (Bridge) Act 1963 No 1/1963 (Private), in its preamble, gives the history of the swivelling section of the Wellesley (now Sarsfield) Bridge in Limerick.

THE LIMERICK HARBOUR (BRIDGE) ACT, 1963

Skipping some of the formalities …

WHEREAS by a local and personal Act of 1823 entitled “An Act for the erection of a bridge across the River Shannon and of a floating dock to accommodate sharp vessels frequenting the port of Limerick” the Limerick Bridge Commissioners were incorporated for the purpose of erecting such bridge and floating dock;

A swivel bridge was required …

AND WHEREAS to the intent that the navigation of the River Shannon might receive no prejudice it was provided by the said Act of 1823 that the bridge so to be erected or built under the authority of the said Act should be so constructed and built as that there should remain a free and open passage for ships and vessels to pass up and down the said river on the south side or end of the said bridge through, at, or near the said bridge; and that for such purpose there should be on the said bridge so to be built or on the bank immediately adjoining the south end thereof one or more swivel bridge or drawbridge or bridges so as to admit of vessels passing up and down the said river near the south bank thereof from the parts thereof above the said bridge to the parts thereof below the said bridge and the contrary;

Wellesley Bridge (OSI ~1840)

Wellesley Bridge (OSI ~1840)

AND WHEREAS the said bridge (then known by the name of “the Wellesley Bridge” and now known as “Sarsfield Bridge”) and a swivel bridge in connection therewith were in pursuance of the said Act erected in or about the year 1825;

Control passed to the Harbour Commissioners in 1883

AND WHEREAS by virtue of an order of the Commissioners of Public Works bearing the date the 22nd day of March 1883 and made in pursuance of the provisions of the Wellesley Bridge (Limerick) Act, 1882 and of such provisions the said swivel bridge and the approaches thereto by water were vested in the Limerick Harbour Commissioners (in this Act called the Commissioners) for the use of the public and it was the duty of the Commissioners to maintain the same in good repair and condition and to work the same in such manner as to afford adequate accommodation to shipping and persons using the said bridge;

AND WHEREAS by an Act entitled “The Limerick Harbour (Bridge) Act, 1913” the Commissioners were authorised to make and maintain a new swivel bridge and approaches for vehicular and pedestrian traffic across the River Shannon in substitution for the said swivel bridge and the said Act provided that all powers rights duties and liabilities enjoyed by or imposed on the Commissioners at the date of the passing of the Act in connection with or in anywise concerning the swivel bridge or the approaches thereto by road or by water or the works in connection therewith and all byelaws in force at said date should be deemed to apply and should apply to the new swivel bridge and the approaches thereto and the works in connection therewith;

A new swivel section was built in 1923 …

AND WHEREAS the said new swivel bridge was in pursuance of the last recited Act erected in or about the year 1923 and has been since and still is in use;

The formerly swivelling section

The formerly swivelling section

AND WHEREAS up to and including the 8th day of February 1927 the said new swivel bridge was from time to time opened by the Commissioners for the purpose of enabling ships and vessels to pass up and down the River Shannon to and from two quays on the east side of the bridge known as Honan’s Quay and McGuire’s Quay;

… but never opened after 1927

AND WHEREAS the new swivel bridge has not been opened for the passage of a ship or vessel since the month of February 1927;

AND WHEREAS Sarsfield Bridge and the new swivel bridge carry the main stream of vehicular traffic across the River Shannon to and from Shannon Airport and to and from the West of Ireland and the traffic by road over the new swivel bridge has increased greatly;

AND WHEREAS the opening of the said swivel bridge would cause a serious disruption of such traffic by road and pedestrian traffic;

Opening it would be a nuisance

AND WHEREAS it is expedient in the interests of the public travelling by road that the Commissioners should be relieved of their duty to open the said new swivel bridge for the passage of ships and vessels;

AND WHEREAS the purposes of this Act cannot be effected without the authority of the Oireachtas.

So the Commissioners don’t have to do it any more

Interpretation.

1.—In this Act unless the subject or context otherwise requires:—

the expression “the Commissioners” means the Limerick Harbour Commissioners;

the expression “the new swivel bridge” means the swivel bridge authorised by the Limerick Harbour (Bridge) Act, 1913.

Restriction of Commissioners’ liability in respect of swivel bridge.

2.—From and after the passing of this Act and notwithstanding anything contained in any other Act the Commissioners shall not be under any liability to open the new swivel bridge for the passage of ships or vessels or to maintain or repair the said swivel bridge in such a manner as to render the same capable of being opened.

Compensation.

3.—(1) Where this Act has the effect of curtailing or terminating a legal right of any person (including, in particular, a right of navigation, whether or not conferred by statute), such person may, within twelve months after the passing of this Act, make to the Commissioners a claim for compensation in respect of such curtailment or termination and he shall be entitled to be paid compensation therefor by the Commissioners and, in default of being paid such compensation when the amount thereof has been agreed upon or has been determined under this section, to recover it from the Commissioners in any court of competent jurisdiction.

(2) In default of agreement, the amount of any compensation payable by the Commissioners under this section shall be determined by arbitration under the Acquisition of Land (Assessment of Compensation) Act, 1919 (as amended by subsequent enactments) as if the compensation were the price of land compulsorily acquired and the arbitrator shall have jurisdiction to determine whether compensation is, in the circumstances, payable at all.

(3) Such compensation shall be paid by the Commissioners out of any moneys for the time being in their hands.

Expenses.

4.—All costs, charges and expenses preliminary to and of and incidental to the preparing, applying for and passing of this Act or otherwise in relation thereto shall be paid by the Commissioners out of any monies for the time being in their hands.

Short title and collective citation.

5.—(1) This Act may be cited as the Limerick Harbour (Bridge) Act, 1963.

(2) This Act, the Wellesley Bridge (Limerick) Act, 1882, the Limerick Harbour (Bridge) Act, 1913 and the Act 4 George IV Cap XCIV may be cited together as the Limerick Harbour (Bridge) Acts, 1823-1963.

I wonder whether anyone got compensation.

My OSI logo and permit number for website



The Ohio River

His tow, like most, was 105 feet wide. The lock chamber is 110 feet wide. To park his 1,130-foot, 19,200-ton craft, he had as much space as a car does in a crowded parking lot.

From a fascinating piece on the New York Times website about two ageing locks on the Ohio and the traffic that passes through them.

h/t Alex Tabarrok on Marginal Revolution

Foynes

The Shannon Commissioners built or improved seven piers and quays on the Shannon Estuary in the 1840s. In their eleventh and final report, the Commissioners gave the total income at six of them, for quayage, wharfage and cranage, for the year 1849. [Eleventh and Final Report of the Commissioners, Under the Act 2 & 3 Vict c61, for the Improvement of the Navigation of the River Shannon, Ireland; with an Appendix Ordered, by The House of Commons, to be Printed, 3 June 1850 407]

Kilteery                                   £0   4s 10d
Kildysart [Inishmurry]      £0  17s  8d
Querrin                                  £7  15s  4d
Saleen                                 £24    0s 10d
Clare [Clarecastle]          £67  14s   7d
Kilrush                             £105   5s  10d

The Shannon Commissioners quay at Querrin

The Shannon Commissioners quay at Querrin



The only two with any significant traffic were the existing ports of Kilrush [which was the only one to have a crane] and Clare. The other four were a waste of money [but are nowadays delightful places to visit].

Shannon Estuary (OSI ~1900)

Approximate positions of Commissioners’ quays on the Shannon Estuary (OSI ~1900)

The seventh quay, at Foynes, was not included because work had not been completed: the original plans were replaced by a more elaborate scheme, with a landing wharf, a pier, a slip and a harbour, towards which the proprietor, Lord Monteagle, had subscribed £4250, the largest amount paid by any landowner on the estuary. The Commissioners said:

Foynes Harbour, when complete, will consequently give secure quayage to sea-going vessels at all times of tides, and in fact will be the only port on the Shannon possessing that advantage; all the others, including the quays of Limerick, being dry, or nearly so, at low-water.

Foynes undeveloped (OSI ~1840)

Foynes undeveloped (OSI ~1840)

And so indeed it proved to be. Foynes, sheltered by its island to the north, grew as a result of the development of the quays.

Foynes (OSI ~1900)

Foynes (OSI ~1900)

But Foynes never became quite as important as some folk hoped, in the 1850s, that it would become.

The Irish packet station Commissioners

On 30 August 1850, C E Trevelyan, Assistant Secretary to HM Treasury [who is perhaps best known as the author, with Stafford H Northcote, of the Northcote-Trevelyan Report on the reform of Her Majesty’s Civil Service], wrote a Treasury Minute:

My Lords [of the Treasury] have before them a letter from the Secretary to the Admiralty, dated the 23rd instant, enclosing copies of a letter from the Board of Trade, dated the 8th instant, and an extract from a petition signed by a large number of landed proprietors in Ireland, praying for an inquiry with a view to the adoption as a Packet Station of one of the harbours in Ireland, and suggesting the appointment of a Commission for the above purpose.

Write to the Secretary to the Admiralty, and desire that he will state to the Lords Commissioners that my Lords are pleased to appoint a Commission as recommended by them, consisting of the following gentlemen:—

The Right Hon the Earl Granville, Chairman
The Hon William Cowper, MP and one of the Lords of the Admiralty
Sir James Alexander Gordon KCB, Rear Admiral of the Red, and Lieutenant-Governor of Greenwich Hospital
Sir John Fox Burgoyne KCB, Major-General, and Inspector-General of Fortifications
Captain Stephen Ellerby, one of the Elder Brethren of the Trinity House.

And my Lords desire that three of the said Commissioners form a quorum,

My Lords also concur with the Lords Commissioners of the Admiralty that the above-mentioned petition should be referred to the Commissioners, and that they be instructed to make inquiry —

1st. As to the harbours in Ireland best suited for a Packet Station.
2nd. The advantages and disadvantages of adopting a harbour in Ireland for a Packet Station, so far as regards the trade and other interests of the empire, and to report the evidence to the Admiralty, with such observations as may enable Her Majesty’s Government to form a judgment on the premises.

My Lords request that the Lords Commissioners of the Admiralty will give such further directions as may be required for the meeting of the Commissioners, and for the conduct of their proceedings.

(Signed) C E Trevelyan

[Report of the Commissioners appointed to inquire as to the proposal for an Irish Packet Station. Presented to both Houses of Parliament by Command of Her Majesty. HMSO, London 1851]

The background to this was the transatlantic mail service, for which the UK contract was won by Samuel Cunard in 1839. Steamers left Liverpool every Saturday in summer (April to November) and every second Saturday in winter “alternately via Halifax to Boston and direct to New York”, with return services on Wednesdays: a packet ship was one providing a regular scheduled service, often but not necessarily carring mails. Cunard’s was not the only north Atlantic packet service: the US government had contracts with

  • Collins and Brown of New York, for a Liverpool–New York service, fortnightly in summer and monthly in winter
  • a line serving Bremen and New York, calling at Southampton
  • a third line serving Havre and New York, also calling at Southampton.

The Irish petition, which was concerned only with the UK mails contract, claimed that the total time required, from Liverpool to Halifax or New York, would be shorter if the mails went

  • by train from Liverpool to Holyhead [which the Commissioners reckoned would take 4 hours]
  • by steamer from Holyhead to Kingstown [6 hours]
  • from Dublin by rail to one of several Irish ports
  • thence by steamer across the Atlantic.

The Commissioners allowed for time on transits between steamers and railways; they assumed that the railways could operate at 30 miles per hour, which was 5 mph faster than the average at the time. They considered nine possible Irish ports: Cork, Long Island Sound, Berehaven, Crookhaven, Dunmanus Bay, Valentia, Galway and, in the Shannon Estuary, Foynes and Tarbert. Most of those had no rail connection to Dublin, but the Commissioners gave them the benefit of the doubt, assuming that a line would be built to wherever the packet station might be located.

The Commissioners took their job seriously. They circulated queries and received responses from 83 individuals and institutions including shipping firms, naval and coastguard officers, government departments, chambers of commerce, local politicians and officials. They interviewed 32 individuals and deputations, some of them more than once. They considered 36 items of “further documentary evidence” and 53 “further papers, reports &c” and wrote up the whole lot, including two plans (maps).

The Commissioners were not keen on using any port in the west of Ireland:

It appears, from the evidence of the majority of the naval officers to whom we have referred, that the navigation of the west coast of Ireland is dangerous, particularly in the winter. The coast from Mizen Head round to Galway Bay is, in nautical language, “steep-to”; there being 100 fathoms water at 18 to 29 miles off its outlying dangers. It is also subject to fogs and hazy weather, and to frequent heavy gales of wind blowing towards a lee-shore, with high Atlantic seas and very uncertain soundings.

Balancing the time to be saved on the transatlantic crossing and the “nautical qualifications” and resources of each port, the Commissioners said that the two best options were Foynes and Galway. However, the Commissioners did not think any Irish packet station would be a good idea:

We find no reason to conclude that the local and particular advantages resulting from the proposed measure would be so great, or the saving of time so important, as to counterbalance the large additional expense which would be entailed upon the Imperial Revenue, and the evils and inconvenience which would be inflicted on the great body of the mercantile and travelling portion of the community by removing the packets from the place where they were originally established, as being the focus of the commercial transactions of the United Kingdom with the North American continent.

None of the suggested locations for an Irish packet station would save more than 12 hours in a voyage of about 11 days, so the benefit to be gained for the mail service was small. But the principal problem was the effect on the passenger service (and the small amounts of high-value, low-bulk freight which could be sent by steamer). The steamer owners needed the income from both passengers and mails to make their operations pay, and the Irish proposal would have imposed great inconvenience on passengers. Instead of loading themselves and their luggage on the steamer in Liverpool, and unloading in Halifax or New York, passengers would have had to change

  • from steamer to railway at Kingstown
  • from railway to carriage in Dublin
  • from carriage to railway at Kingsbridge or Broadstone
  • from railway to carriage at or near the Irish packet station
  • possibly from carriage to a small steamer acting as tender
  • from tender to transatlantic steamer.

Apart from the inconvenience, the process would have introduced several opportunities for delays.

The Galway and Shannon ports Committee

The Commissioners, then, rejected both Foynes and Galway. But several people in Ireland rejected the Commissioners’ findings, mostly on grounds that were entirely irrelevant. There was a particularly colourful diatribe in the Galway Mercury, and Weekly Connaught Advertiser of 8 May 1852, which lauded Galway’s “glorious expanse of water, deep, and capacious and sheltered as it is, and pronounced by the most competent naval authorities to be one of the finest ports in the whole world”. The decision not to base the packet station there was “a fair specimen of Saxon justice to Ireland”: basing the packet station in Galway would “have the effect, in the course of a few years, of destroying in a great measure the commercial pre-eminence of that country [England, rather than Great Britain or the United Kingdom, it seems], and transferring much of its wealth and its greatness to this island which it hates so cordially, and which for six centuries it has ceased not to plunder and oppress”.

The editor did not, alas, have space to consider such mundane matters as the inconvenience to British passengers of being forced to travel to America via Galway. But the focus of the promoters of an Irish packet station, and especially of the vociferous Galway gang, turned to communication between Ireland and the USA. There were unsuccessful attempts to set up steamship companies; Packet Station Committees were set up [eg Tipperary Free Press 28 January 1852 on Mr Wagstaff and on the Dublin Packet Station Committee;  Galway Mercury, and Connaught Weekly Advertiser 31 January 1852 on the Irish and American Steamship Company]; the merchants of Belfast were persuaded that, with a packet station in Galway, American merchants and buyers would visit Ireland and (once a railway link was provided) especially Belfast before visiting England and Scotland [Northern Whig 12 February 1852; Morning Post 16 February 1852; Belfast News-Letter 23 February 1852]. Also in February, the Limerick Packet Station Committee was forced to publish a pained refutation of the recommendations of one James Whiteside, a member of the Dublin committee who was a strong advocate of the Galway proposal [Report of the Dublin Committee Considered, and Mr Whiteside’s Statement Reviewed, with remarks on the relative advantages of the Shannon and Galway Bay published by direction of the Limerick Packet Station Cmmittee, Browne & Nolan, Dublin 1852].

Unfortunately, in the same month, Lord John Russell’s Whig government collapsed and the Earl of Derby set up a minority Conservative government — in which the same James Whiteside, MP for Enniskillen, became Solicitor-General for Ireland. The Tribes of Galway soon descended on the unfortunate Prime Minister, with a “numerous and influential deputation” led by that turbulent priest, the Very Rev Peter Daly, a spiritual father of Monsignor James Horan, determined to wring every penny he could from the temporal power.

The Rt Hon Earl said that improving Galway’s harbour would make sense, in an imperial context, only as a packet station. And because the Irish Packet Station Commissioners had recommended two Irish ports, Foynes and Galway, the first step was to decide between the two of them. Accordingly, the government had decided to appoint three naval officers to visit the two ports, inquire into their relative advantages and report back. He could not commit himself to anything more until he had the report and he was sure that the deputation understood that [Dublin Evening Mail 10 May 1852].

That got Derby through the general election in June, after which he formed another minority government, which lasted only until December. In the meantime, though, the three naval officers — Captains F W Beechey, Henry Smith and James Crawford Caffin — visited Galway and inteviewed witnesses recommended by the Harbour Commissioners and other authorities; they also inspected the port and considered what works might be necessary. They then embarked on HM steam sloop Geyser and sailed to Limerick: they were thus able to see the approaches to both ports. They visited both Foynes and Tarbert on a small steamer and, again, interviewed witnesses. They returned to Dublin by railway.

Their focus was on whether Galway and the Shannon would be accessible at all states of the tide, at all times day or night, and in all weathers. Only with such access could the “greatest regularity and dispatch” be maintained for “steamers of the largest class”. That access was needed whether the ports were to be packet stations or harbours of refuge or both. It was appreciated that both ports would probably need engineering works to be carried out, as well as links to the railways.

On 15 September 1852 the Limerick and Clare Examiner reported Lord Monteagle [former Chancellor of the Exchequer; landlord at Foynes] as saying that the naval officers’ report had been submitted to the Admiralty and that they had preferred Foynes to Galway. However, in its issue of 25 September 1852 the Examiner carried extracts from the report itself, in which the three captains said:

  • the Shannon was better than Galway for the “safety and expedition with which a vessel when arriving can be got within the limits of her port” or clear the land on departure
  • neither location could provide the required “security and accommodation of the packets, and the convenience for landing and embarking passengers and dispatching the mails”. Facilities could be developed at Galway or at Foynes or Tarbert in the Shannon Estuary; Galway would be much more expensive
  • either Galway or the Shannon could act as a harbour of refuge for vessels that had good anchors and cables, but for those without the Shannon provided more safe options
  • the west coast of Ireland was “subject to higher seas and worse weather than other parts of the British Islands not so situated, and that weather in which no vessel would be justified in running for a port, does appear to prevail to a greater extent off the western ports of Ireland than at other ports”, which would mean that the “greatest regularity and dispatch” could not be assured
  • accordingly, neither Galway nor the Shannon was suitable as a packet station.

The report is Galway and Shannon Ports: Return to an Order of the Honourable The House of Commons dated 31 March 1859 for a copy of the instructions of the 11th day of June 1852 from the Admiralty to the Committee appointed to inquire into the suitableness and capabilities of the Ports of Galway and of the Shannon for a Transatlantic Packet Station, in connexion with a harbour of refuge … Ordered, by The House of Commons, to be Printed 19 April 1859 257.

Only the Cork [Cork Examiner 27 September 1852] and Belfast papers [Belfast Mercantile Register and Weekly Advertiser 28 September 1852] were pleased, seeing an opportunity … as did the Earl of Mayo, who wanted the packet station set up in Blacksod Bay.

The packet station schemes

It seems that the packet station enthusiasts wanted

  • the government to pay for whatever harbour and other works were needed
  • the government to designate the chosen port as a packet station for the mails
  • one or other of the private-sector contractors to be forced to use that station
  • the Post Office to cope with the many links in the chain from the Atlantic through Galway and Dublin to Britain, each link providing an opportunity for things to go wrong — and all of them on the critical path.

There do not seem to have been any serious attempts to quantify the likely passenger traffic: at that time, as in the early days of air travel, only small numbers of passengers could be carried and high fares were required. Furthermore, only for small, high-value or perishable freight was the extra cost of steam travel worth paying: for anything else, sail was cheaper. But the enthusiasts do not seem to have been willing or able (at least at that time) to come up with the money required to set up their own steam shipping company: the Dublin committee had decided that it would be too risky an investment given the competition from established operators at British ports.

The whole thing sounds like the mad attempt to get a canal to Clones.

The Department of Communications, Climate Action & Environment

But the politicians have not yet finished with Foynes. According to the Limerick Leader of 10 November 2016,

Foynes in line to be US transit hub, says minister

Hundreds of jobs could be created at port

I can’t find any mention of this on the website of the Department of Communications, Climate Action & Environment, so I am unable to check the newspaper report. It begins:

FOYNES Port is poised to become a major European link with the US in the wake of Brexit, in a new Government proposal that could create hundreds of local jobs.

Now, we must immediately eliminate the exaggeration that might be the fault of the minister or the journalist: “in line to be” and “poised to become” might suggest that there is some plan or perhaps even some agreement between the USA and some undefined European body, whereas all we have, it seems, is a bright idea, the first phase of the underpants gnomes’ business plan.

It seems that there might be a demand for the use of facilities at Foynes for one or more of these reasons:

  • Brexit (which, of course, means Brexit)
  • “US pre-clearance for ships crossing the Atlantic”
  • congestion at Rotterdam
  • Foynes as a transit point for freight to and from North America.

This mishmash of unconnected ideas may or may not be the minister’s fault. Let’s see if we can make sense of it.

Brexit

According to the article

“Our second biggest export destination is the USA. From a Brexit point of view this is an opportunity to attract industries from right across Europe that are exporting into the US,” said Minister Naughten.

“The reality is that post-Brexit exports into the UK are going to be put under pressure, so this is an opportunity to make a new market and make it far more efficient for the export of goods.”

A ‘hard Brexit’ could result in EU borders, which would increase costs for freight companies shipping out of Britain into Europe. This proposal means that Foynes could become a more attractive destination for these companies to ship from.

The first paragraph is nonsense. Existing trade with the US is irrelevant to the proposal. As for the “opportunity to attract industries from right across Europe”, their ability to export to the USA is entirely unaffected by Brexit, unless that nice Mr Trump arranges something really insane with Ambassador at Large Farage. If you’re exporting widgets from Dusseldorf to the USA, why would Brexit cause you to route them through Foynes?

The second paragraph is no better.

The reality is that post-Brexit exports into the UK are going to be put under pressure, so this is an opportunity to make a new market and make it far more efficient for the export of goods.

Whose exports are we talking about? What new market? Far more efficient than what?

The third paragraph is confusing.

A ‘hard Brexit’ could result in EU borders, which would increase costs for freight companies shipping out of Britain into Europe. This proposal means that Foynes could become a more attractive destination for these companies to ship from.

There are, we are told, freight companies shipping out of Britain into Europe. I don’t know why we’re discussing freight companies rather than manufacturers or distributors [the ultimate emptors, who will pay the freight companies for the cost or inconvenience]. But anyway, these companies are shipping “out of Britain into Europe”, so we can assume that the goods start in Britain. If they are to get to Foynes, they still have to be shipped out of Britain into an EU member state, ie Ireland. So instead of going straight to Calais, say, they get shipped to the far side of Ireland and then back to the continent. How does this make the freight companies’ lives easier? Why would the UK/Ireland border be any less hard, or less bureaucratic, than the UK/France?

US pre-clearance

This seems to deal with a separate set of exporters: presumably those remaining in the EU and exporting to the USA. The idea seems to be that they will send their stuff to Foynes, where

“Freight would come into Foynes, get scanned there, get certified, and land in New York and would be the same as an internal shipment.”

According to the Department, Mr Naughten met with the US Ambassador to Ireland Kevin O’Malley and asked him to support the proposal, which would involve US custom official staff being based in Foynes to give full pre-clearance.

I can see that this might create a job or two in Foynes for US customs officials, and perhaps some local admin support. But I see two possible problems. The first is that this might count as an international trade agreement, and Ireland may not be entitled to make its own agreements outside the EU system. I do not, however, know whether that it so. But the second problem seems to me to be more serious: it is that the idea cannot be copyrighted or protected. There would be nothing to stop any other port applying to set up a similar arrangement, getting the benefits of US pre-clearance without the cost and loss of time in sending ships via Foynes.

Congestion at Rotterdam

I do not know whether there is congestion at Rotterdam, but if the volume of world trade is falling that problem might solve itself. Nonetheless, it is useful to keep things in proportion. Here is a map showing the whole of the Shannon Estuary. I’ve circled Foynes.

foynes-resize

Shannon Estuary (Imagery copyright 2016 DigitalGlobe, map data copyright 2016 Google)

And here, on the same scale, is Rotterdam. All those bits that look artificial, too straight to be natural, are docks. You can fly over it yourself here [short URL].

rotterdam-resize

Rotterdam (Imagery copyright 2016 DigitalGlobe, map data copyright 2016 Google)



Here’s Foynes in close-up.

Shannon Estuary (Imagery copyright 2016 DigitalGlobe, map data copyright 2016 Google)

Foynes (Imagery copyright 2016 DigitalGlobe, map data copyright 2016 Google)

I don’t think much of the overflow from Rotterdam will fit at Foynes. Of course there is lots of space elsewhere in the estuary, but it can’t be used: it’s reserved for the tweetie-birds.

That may be a bit of an exaggeration, as you can read here, but the Shannon Estuary isn’t going to get to even 1% of Rotterdam’s capacity.

Foynes as a transit point

I don’t know what that means. Maybe it’s just attaching another buzzword to the pre-clearance idea. If, though, it involves any sort of transhipment, forget it.

Solutions in search of problems

The Shannon Estuary may contain more wasted public-sector investment than any other estuary in Ireland, from the Wellesley [sorry: Sarsfield] Bridge through the Shannon Commissioners’ piers to the minor railways. [As if three loss-making railway lines — to Galway, Ballybrophy and Waterford — weren’t enough, there is a campaign to restore a fourth, to Foynes.]

Both the Shannon Commissioners’ piers and the packet station campaign sought public money to build facilities in the hope that they would attract private investment. In those cases, and with this present campaign, it might be better to wait for a private-sector investor to put money on the table first.

My OSI logo and permit number for website

White flour

A few minutes past two o’clock in the evening of Wednesday, the 6th instant, the Dover Castle left Glin [that should read Limerick] for Tarbert, with between 30 and 40 persons on board, including some of the Glin police.

shannon-estuary-osi-02

The route of the Dover Castle (OSI 25″ ~1900)

When she reached the pool, she took a large brig and a schooner in tow, which she took as far as Grass Island. She then continued her course, and when about three miles west of Ring Moylan quay, a thick fog came like a wall upon her, so that it was impossible to see half the length of the deck.

Captain White immediately dropped anchor, and was obliged to remain so. The fog continuing all night and the next day.

About two o’clock on Thursday, there being no appearance of the fog clearing off, and several persons on board having eaten nothing since Wednesday morning, two women fainted, and the circumstance having been communicated to the captain, he immediately ordered the steward to open a bag of flour, and served it out in large buckets to the women, who, in a short time, had large cakes made, and baked them for the passengers.

At half-past four o’clock the fog began to clear, and at five the steamer weighed anchor, and reached Kilrush in safety.

Statesman and Dublin Christian Record
19 January 1841 quoting Limerick Standard

My OSI logo and permit number for website

From the BNA

Celebrating Ireland’s floating heritage

Waterways Ireland
MARINE NOTICE No 126 of 2016

SHANNON NAVIGATION

Large Vessels Berthing  at Floating Moorings

Waterways Ireland wishes to advise all masters and owners of vessels with an overall length in excess of 11m, particularly those constructed in steel, of the following points in relation to berthing at floating moorings and also on finger jetties having a length of 9m:

  1. These vessels cannot be secured properly over their entire length thereby placing extra strain on the pontoon mooring cleats as mooring lines are doubled up.
  1. The large overhang of these vessels creates an obstruction to other vessels trying to manoeuvre onto the berth especially for novice recreational boaters and hire boat crews with limited experience.
  1. In adverse weather conditions of high winds and /or flood conditions with high flow rates there is a greater risk of breaking free of the mooring and causing damage to other vessels and the mooring infrastructure especially as these large vessels are primarily constructed in steel and are very heavy.
  1. The 9m finger mooring is designed for vessels with a max overall length of circa 10-11m.
  1. The fixings attaching the floating mooring to the main spine can be compromised due to excessive forces induced by inappropriate sized craft leading to premature wear.
  1. Such vessels place excessive strain on the mooring piles and anchor chains as water levels rise especially where masters have secured to both the cleats and the mooring piles themselves.

Masters of such vessels are requested to berth on appropriate lengths of fixed quay wall only. Waterways Ireland thanks its customers for their cooperation in this matter.

Charles Lawn, Inspector of Navigation. 23 rd September 2016
